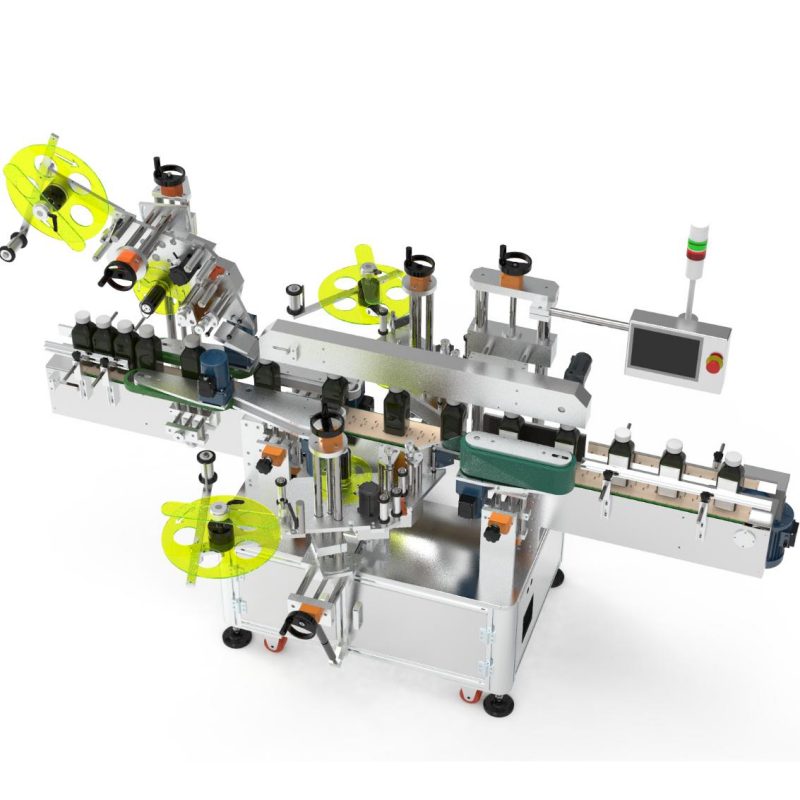

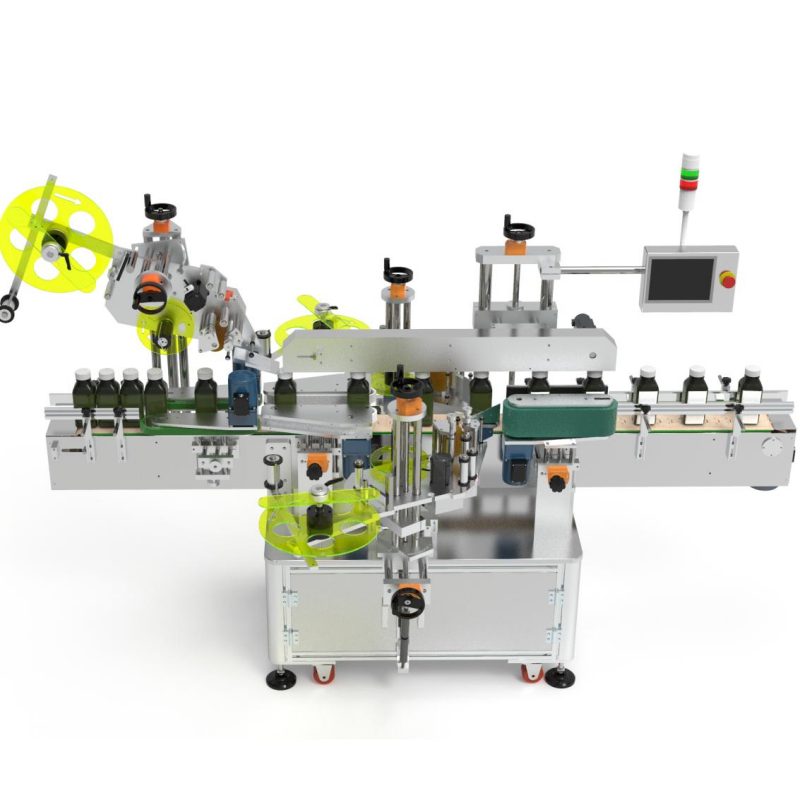

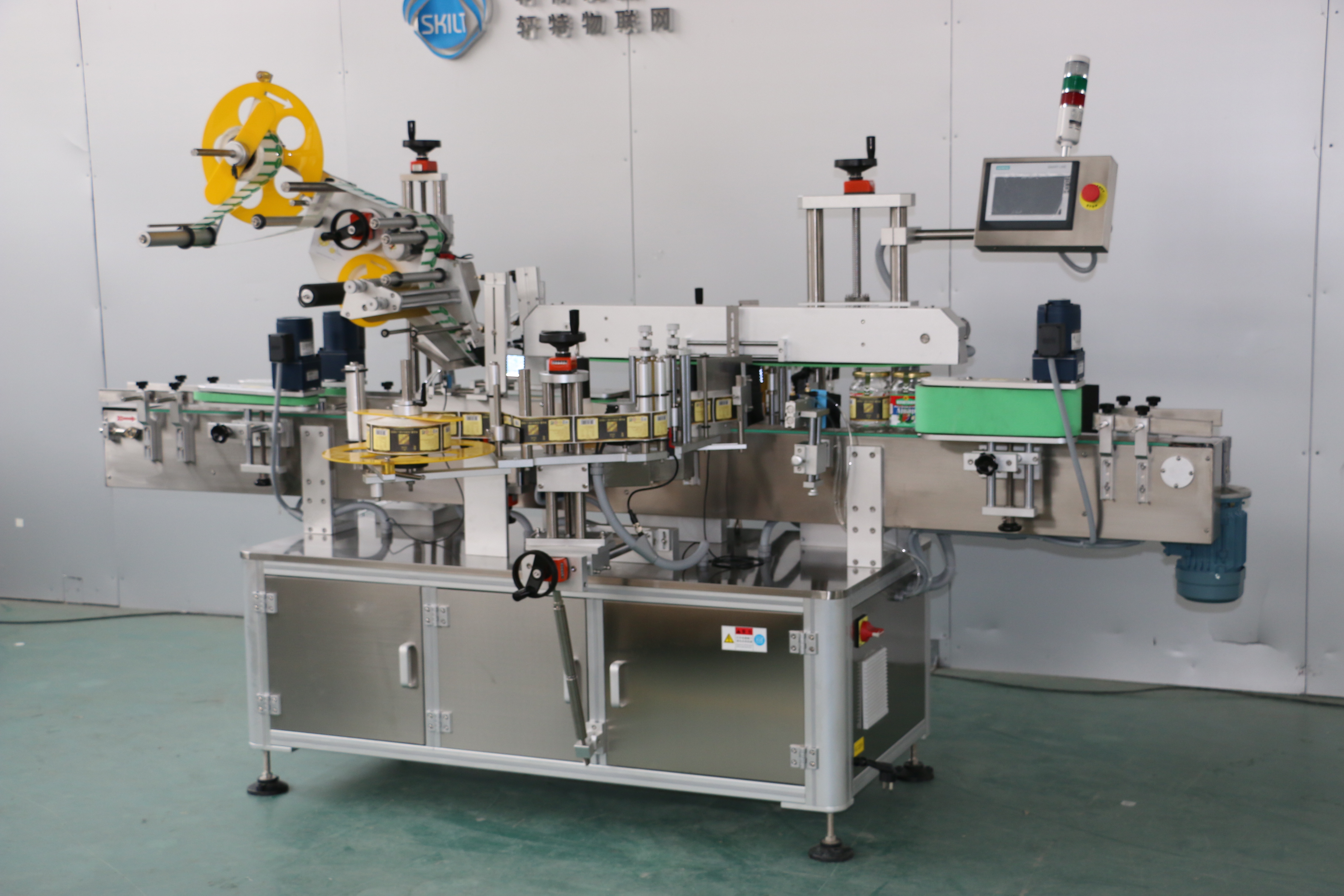

Top & front & back sides labeling machine

Model : DPM-DLM-A

Capacity ：30-150pcs/min

Application: bottle,jars, cans ,box ...

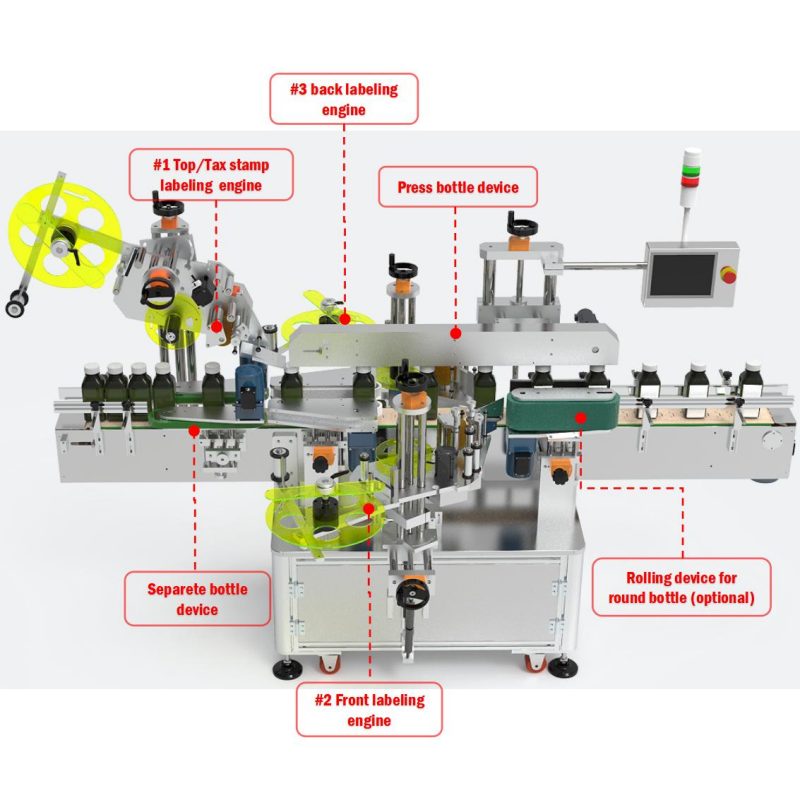

Labeling position: On top and front back sides with three stickers

Control system : Panisonic Servo control labeling engine

Label material: opaque or transparent label

Optional device : Rolling device, printer

Voltage : 110V/220V/380V

Machine can customized depends on client labeling objects size and requirement.

Email us

Machine Function Introduction

● Suit for objects labeling on front back and top surface, with three stickers ;

● With rolling label device, suit for round bottle labeling wrap around;

● With brush label cylinder,suit for square bottle labeling on multi sides with one label;

Model	DPM-DLM-A
Driving Mode	Servo motor
Yield(pcs/min)	30-150 (depends on bottle and label size)
Operating direction	Left or Right
Labeling Accuracy	±1.0 mm
Inner diameter of label roll	76 mm
Outer diameter of label roll	350 mm(max)
Suitable label size	W: 15-150 mm L:15-250 mm
Suitable bottle size	W:(Diameter): 20-90mm , H:30-300mm
Printer use air	5kg/cm ²
Voltage (can customized)	110V/220V/380V
Machine size	2400(L) 1500 (W) 1600 (H) mm
