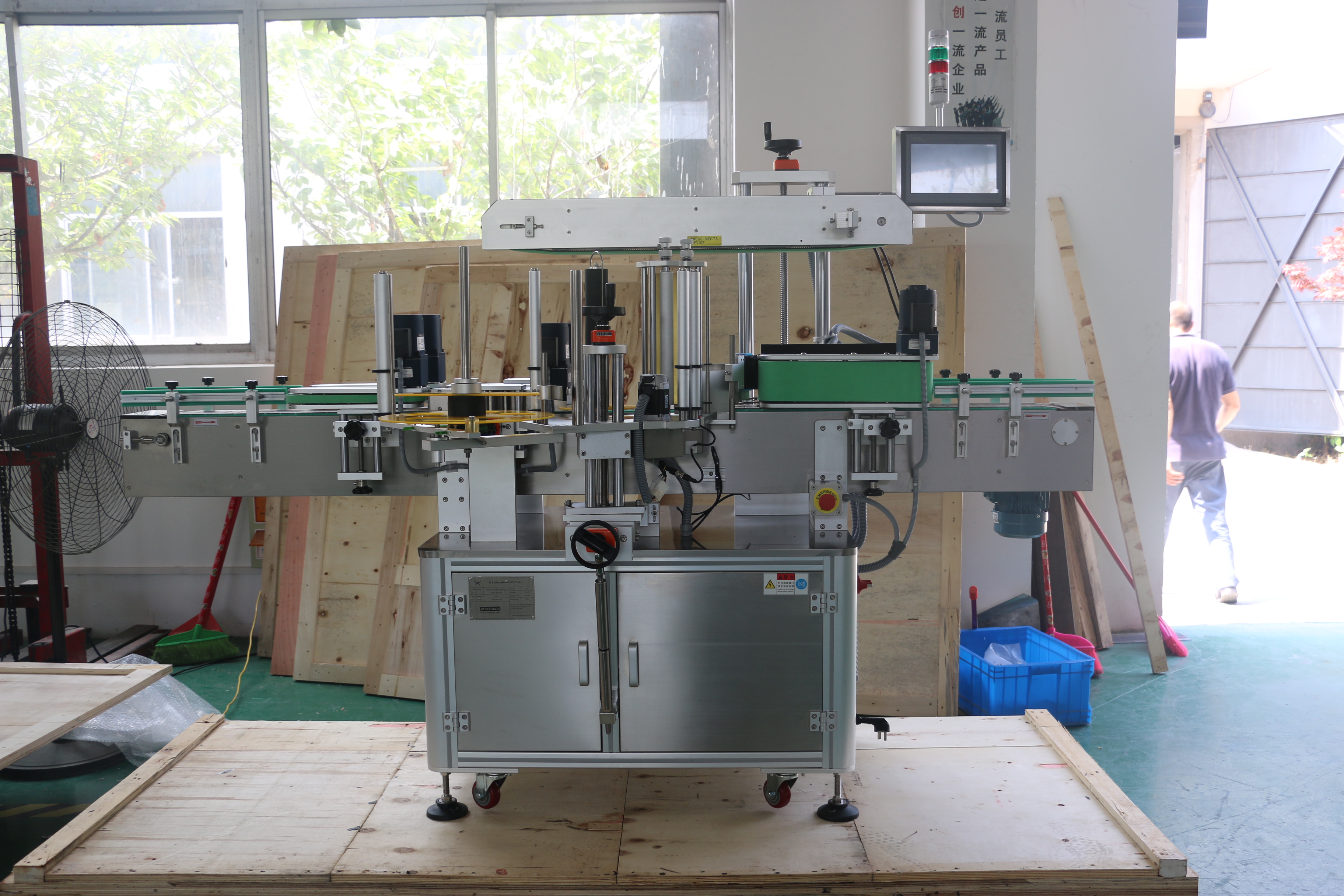

Square bottle jars cans multi-sides labeling machine

Model :SLM-A

Capacity ：30-150pcs/min

Application: square bottle/jars/cans, Triangular /hexagonal/ octagonal bottle

Labeling position: On body side/multi-sides with one label

Control system : Step & Servo & German novexx

Machine size : 2300（L） 1200 (W) 1550 (H) mm

Voltage : 110V/220V/380V

Optional Device: Printer, Collection ,Rolling device

Machine can customized depends on client labeling objects size and requirement.

Email us

Overview
Video
Parameter
Electrical Brand
Related Products

SLM Model Suitable labeling position: Side l Wrap Around

SKILT SLM labeling machine suit for products labeling on multi sides with one label, such as bottle, jars ,cans , box.

With the rolling label device optional,suit for round bottle labeling around together.

What Types of Products Can SLM Series Labeling?

Square Olive Oil Bottles
Whisky bottles
Medicine drug bottle
Square tin cans
Water Bottles/Bucket
Lotion Containers
Tapered Bottles/cup
Multi-Faceted Bottles
Octagonal-Shaped Bottles
If you have a very unique product needs label, we can customize a labeling machine for your print run.

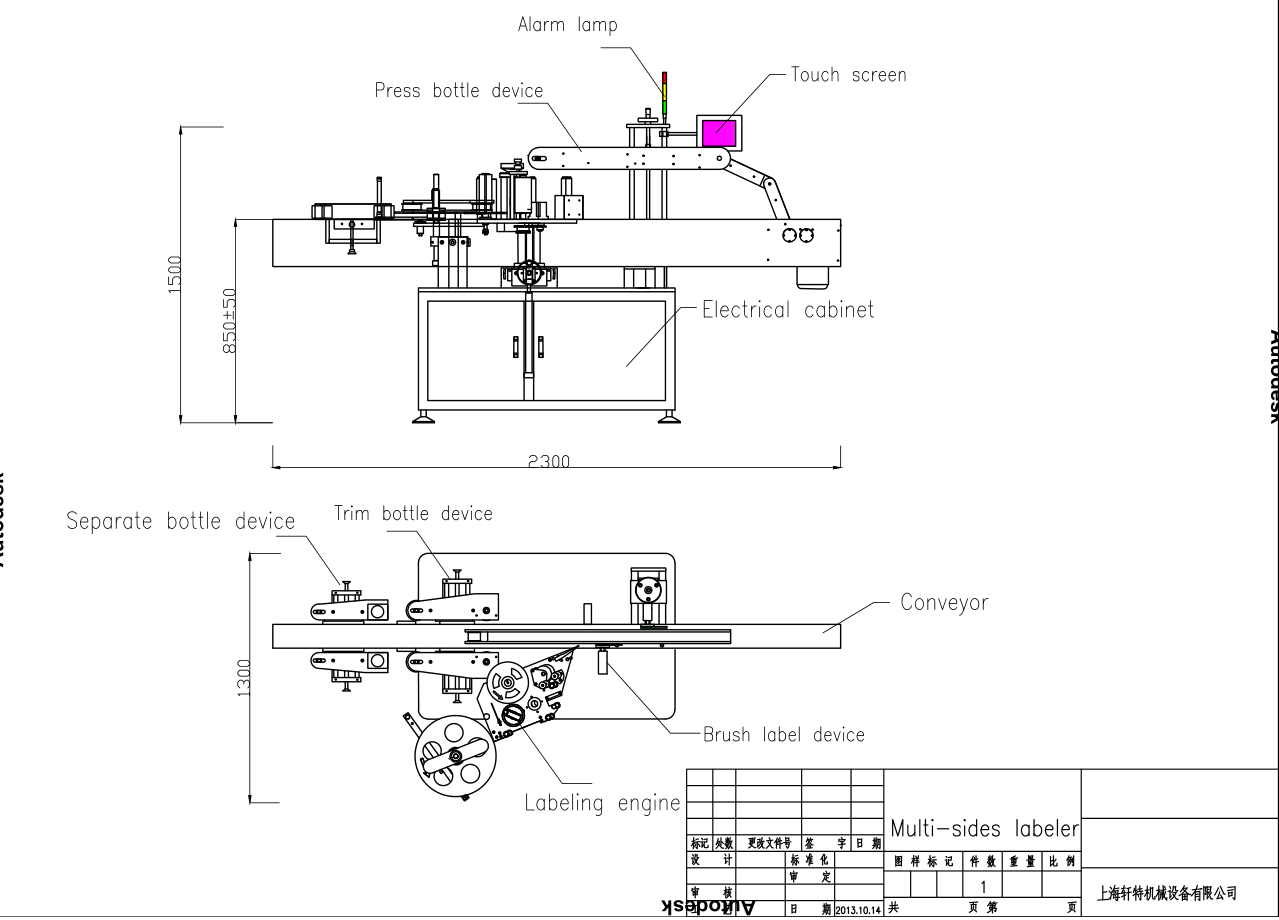

Machine Sketch Map

Parameter

Model	SLM-B
Driving Mode	Servo motor
Yield（pcs/min）	20-150 (depends on bottle and label size)
Operating direction	Left or Right
Labeling Accuracy	±1.0 mm
Inner diameter of label roll	76 mm
Outer diameter of label roll	350 mm(max)
Suitable label size	Width 15-150 mm length 15-250 mm
Suitable bottle size	W:(Diameter): 20-90mm , H:30-320mm
Printer use air	5kg/cm ²
Voltage (can customized)	110V/220V/380V
Machine size	2300（L） 1250 (W) 1300 (H) mm

Electrical Brand

No	Name	Brand
1	HMI (Touch screen)	SIEMENS
2	PLC	SIEMENS
3	Servo motor and driver	Panisonic
4	Sensor (check bottle)	Japan KEYENCE
5	Sensor (check label)	German LEUZE
6	Inverter	DELTA
7	Separate bottle motor	JSCC
8	Tidy bottle motor	JSCC
9	Press bottle motor	JSCC
10	Conveyor motor	Switzerland ABB
11	Encoder	German SICK
