Syringe Injection labeling machine

Model :PWM-A

Capacity ：50-200pcs/min

Application: Syringe Injection

Labeling position: wrap around

Control system : Step& Servo& German novexx

Machine size : 1800（L） 800 (W) 1350 (H) mm

Voltage : 110V/220V/380V

Optional Device: Printer, Collection hopper

Machine with different kind feeding device can choose.

Customized depends on client labeling objects size.

Email us

Overview
Video
Parameter
Electrical Brand
Related Products

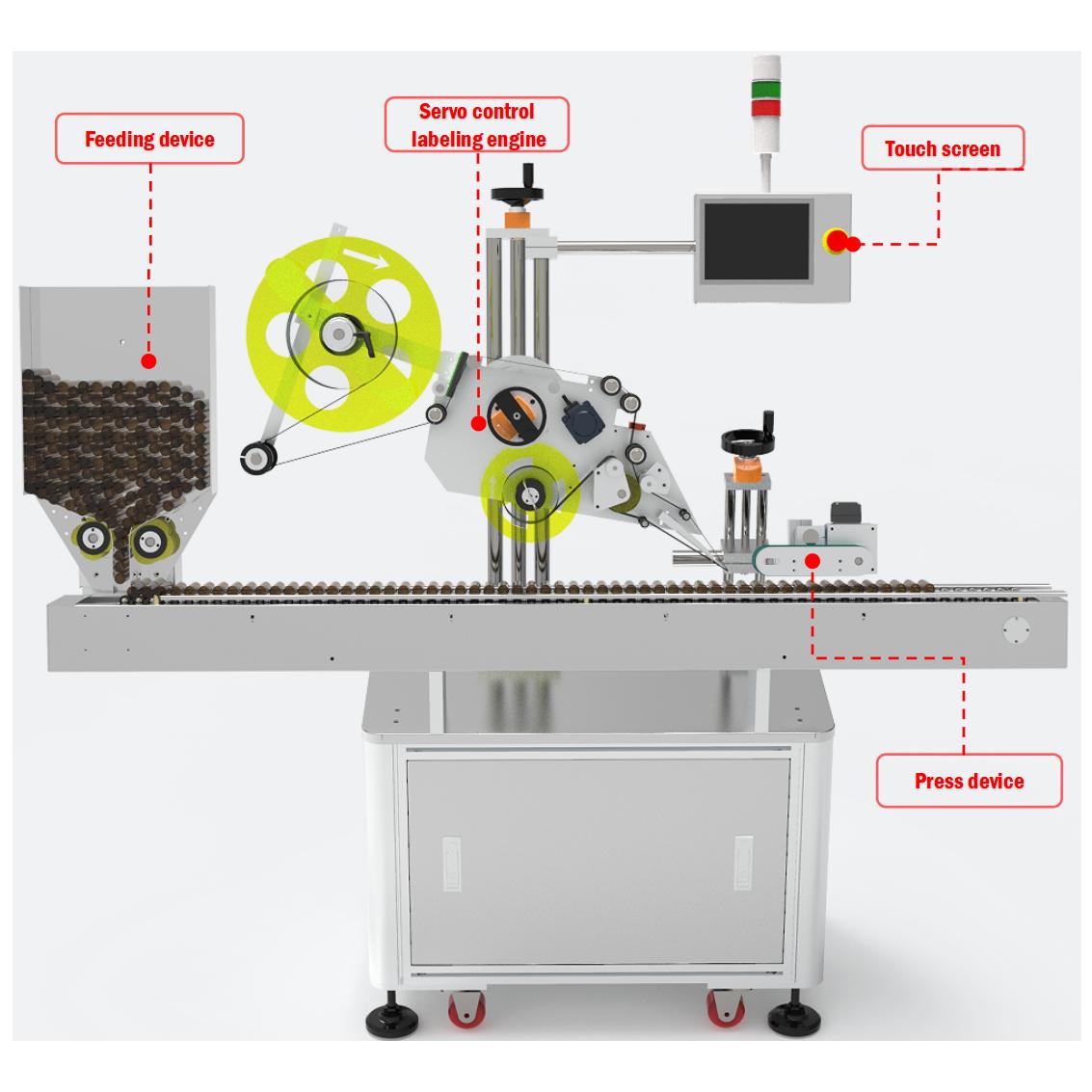

SKILT PWM series is the horizontal way syringe labeling machine,conveyor will customized depends on client syringe shape and size. With the Servo motor labeling engine and German NOVEXX labeling engine for choose.

Additional modules
1. The system can be expanded to include label printing systems such as thermal transfer printing systems, thermal inkjet devices (TIJ), continuous inkjet systems (CIJ) or hot stamping devices,TTO module.
2. Optional vision systems guarantee quality criteria such as the presence, correctness of print data, label placement on your products and ensure that complaints are settled right from the start.

Parameter

Model	PWM-A
Driving Mode	Servo motor
Yield（pcs/min）	50-400 (depends on tube and label size)
Operating direction	Left or Right
Labeling Accuracy	±1.0 mm
Inner diameter of label roll	76 mm
Outer diameter of label roll	350 mm(max)
Suitable label size	L:10-100mm，H:10-150mm
Suitable labeling object size	Diameter: 10-30mm
Printer use air	5kg/cm ²
Voltage (can customized)	110V/220V/380V
Machine size	1800（L） 800 (W) 1300 (H) mm

Electrical Brand

No	Name	Brand
1	HMI (Touch screen)	SIEMENS
2	PLC	SIEMENS
3	Servo motor and driver	Panisonic
4	Sensor (check labeling object)	Japan KEYENCE
5	Sensor (check label)	German LEUZE
6	Roll label motor	German JSCC
7	Conveyor motor	German JSCC
