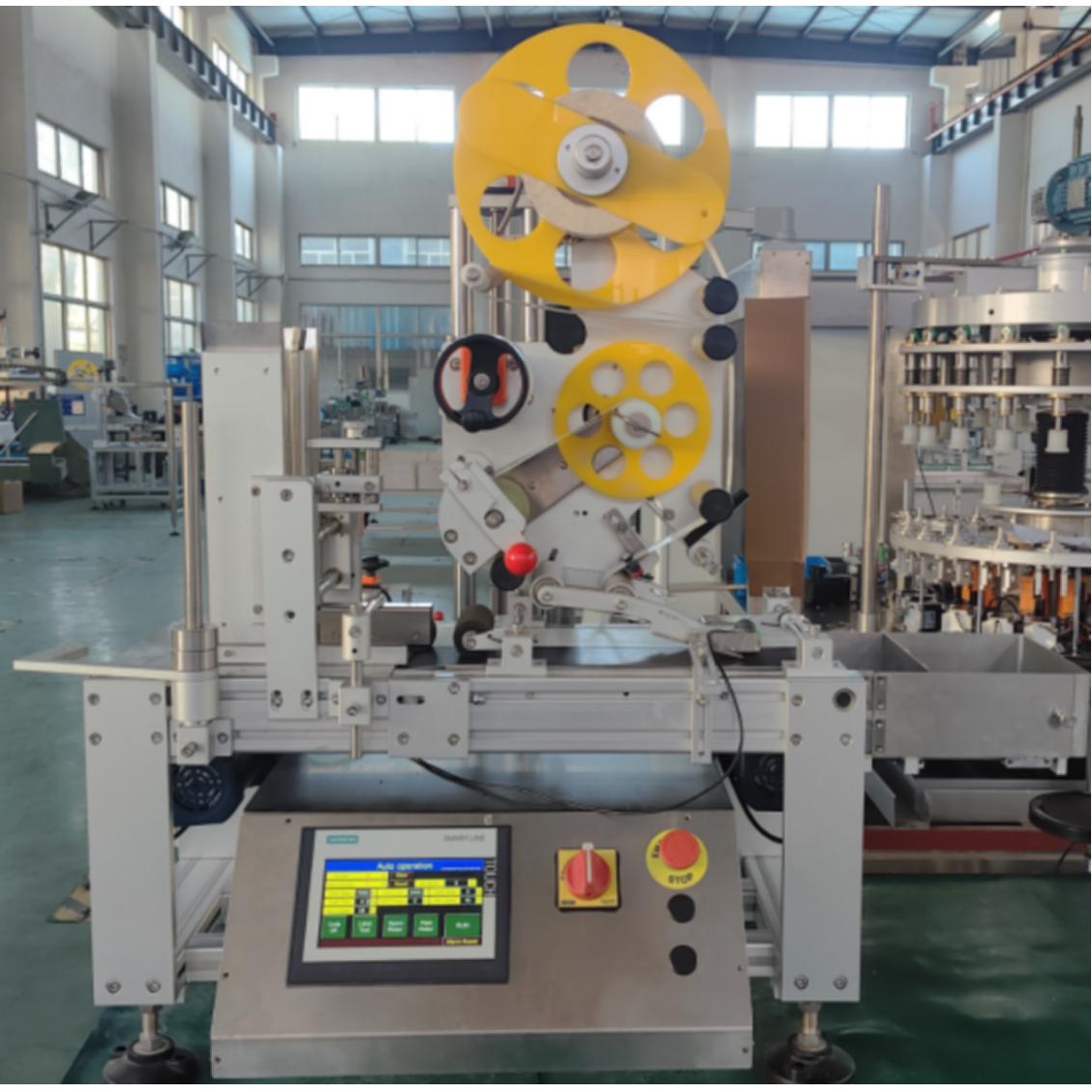

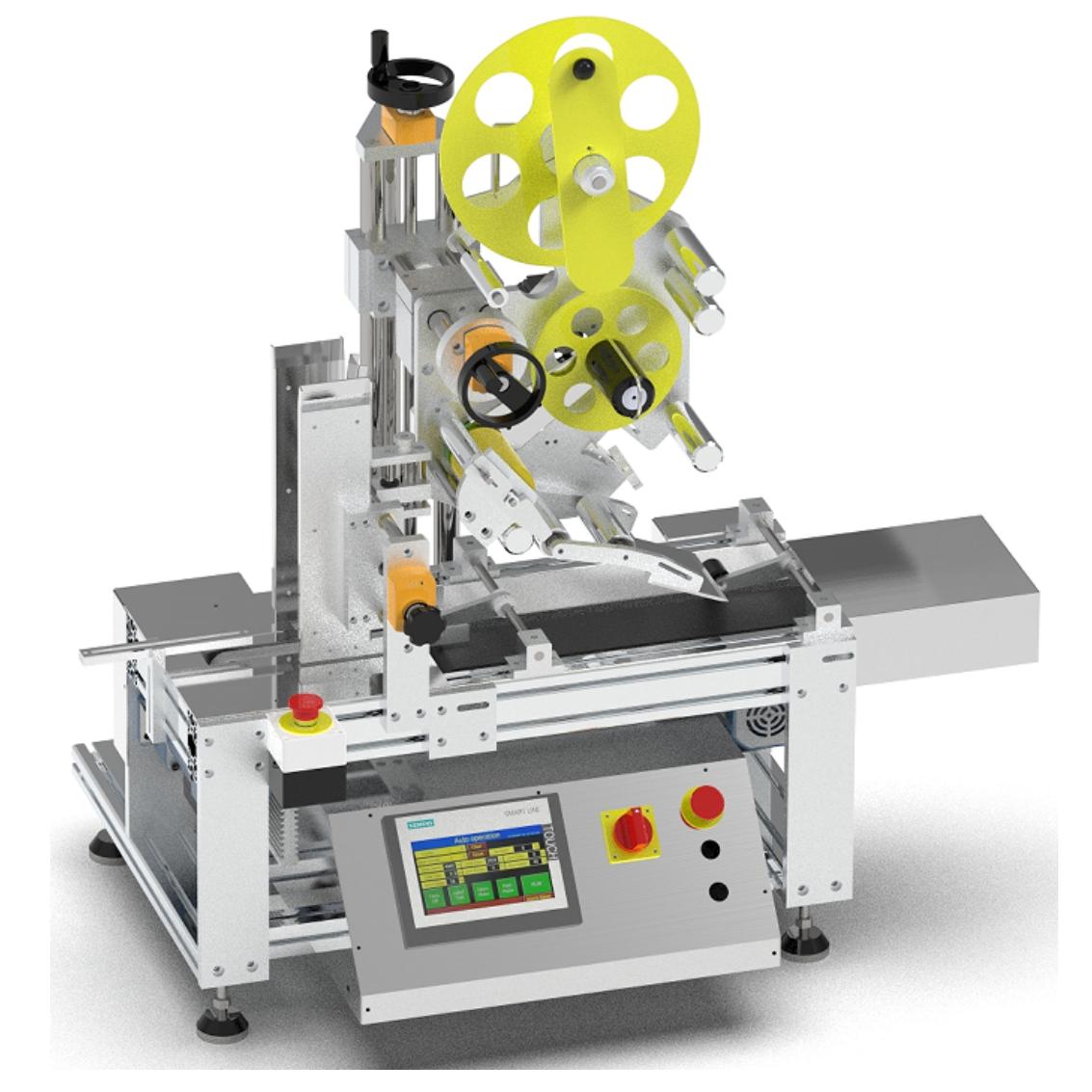

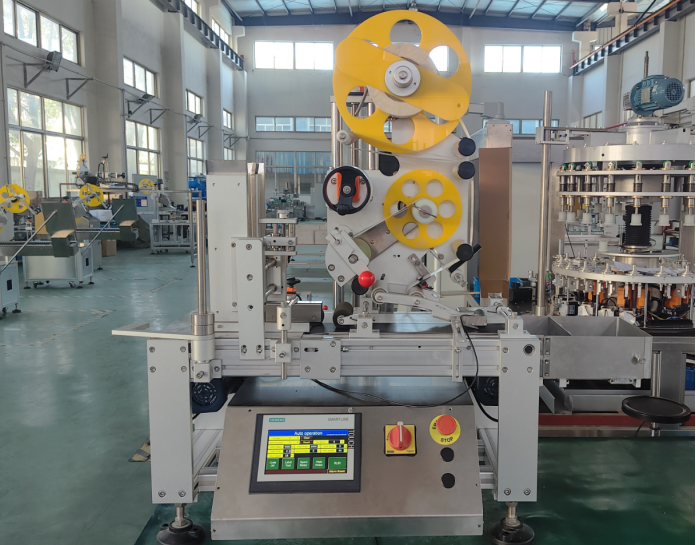

Desktop tag labeling machine

Model :PM-K50-DZ

Capacity ：50-200pcs/min

Application: Hang tag

Labeling position: On top surface

Control system : Servo

Voltage : 110V/220V/380V

Machine size : 1050（L） 450 (W) 1150 (H) mm

Email us

Overview
Video
Parameter
Electrical Brand
Related Products

SKILT Latest desktop mini hang tag label applicator, with servo motor control system.
Machine can customized depends on client tag size.

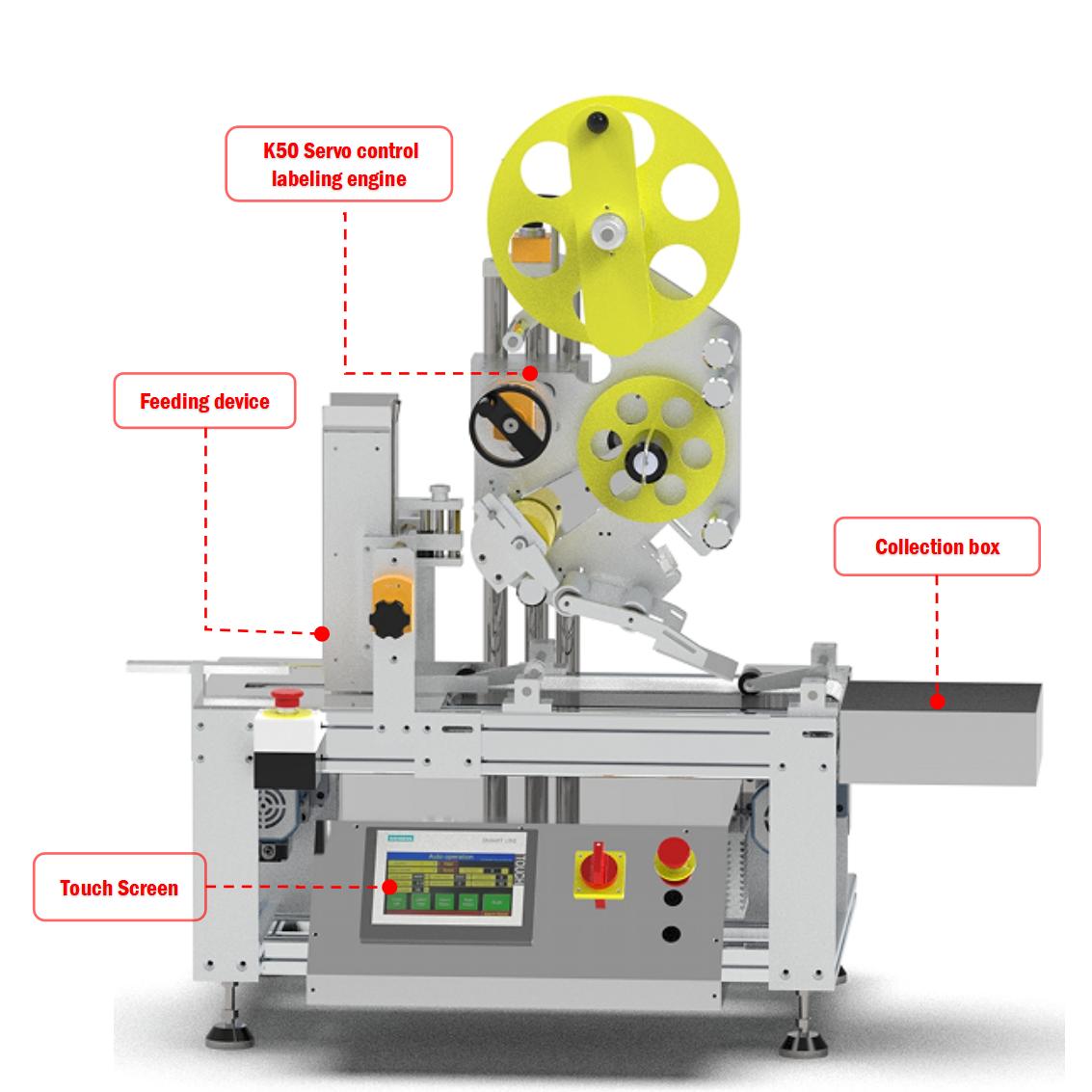

Working process
Worker put lots of tags into the feeder device, tags delivery to labeling engine one
by one waiting for labeling;
When sensor check tag, send signal to PLC, PLC received signal deal with information first, then output signal to servo motor driver, drive motor send label on tag surface.
The sponge device past label on tag surface more smooth, go on delivery to the collection hopper for collection, labeling finish.

Parameter

Model	PM-K50-DZ
Driving Mode	Servo motor
Yield（pcs/min）	100-200 (depends on tag and label size)
Operating direction	Left or Right
Labeling Accuracy	±1.0 mm
Inner diameter of label roll	76 mm
Outer diameter of label roll	350 mm(max)
Suitable label size	L:15-100mm，W:15-100mm
Suitable tag size	L:20-150mm , W:30-150mm
Voltage (can customized)	110V/220V/380V
Machine size	1050（L） 450 (W) 1150 (H) mm

Electrical Brand

No	Name	Brand
1	HMI (Touch screen)	SIEMENS
2	PLC	SIEMENS
3	Servo motor and driver	Panisonic
4	Sensor (check bottle)	Japan KEYENCE
5	Sensor (check label)	German LEUZE
6	Inverter	DELTA
7	Conveyor motor	JSCC
8	Paging motor	JSCC
