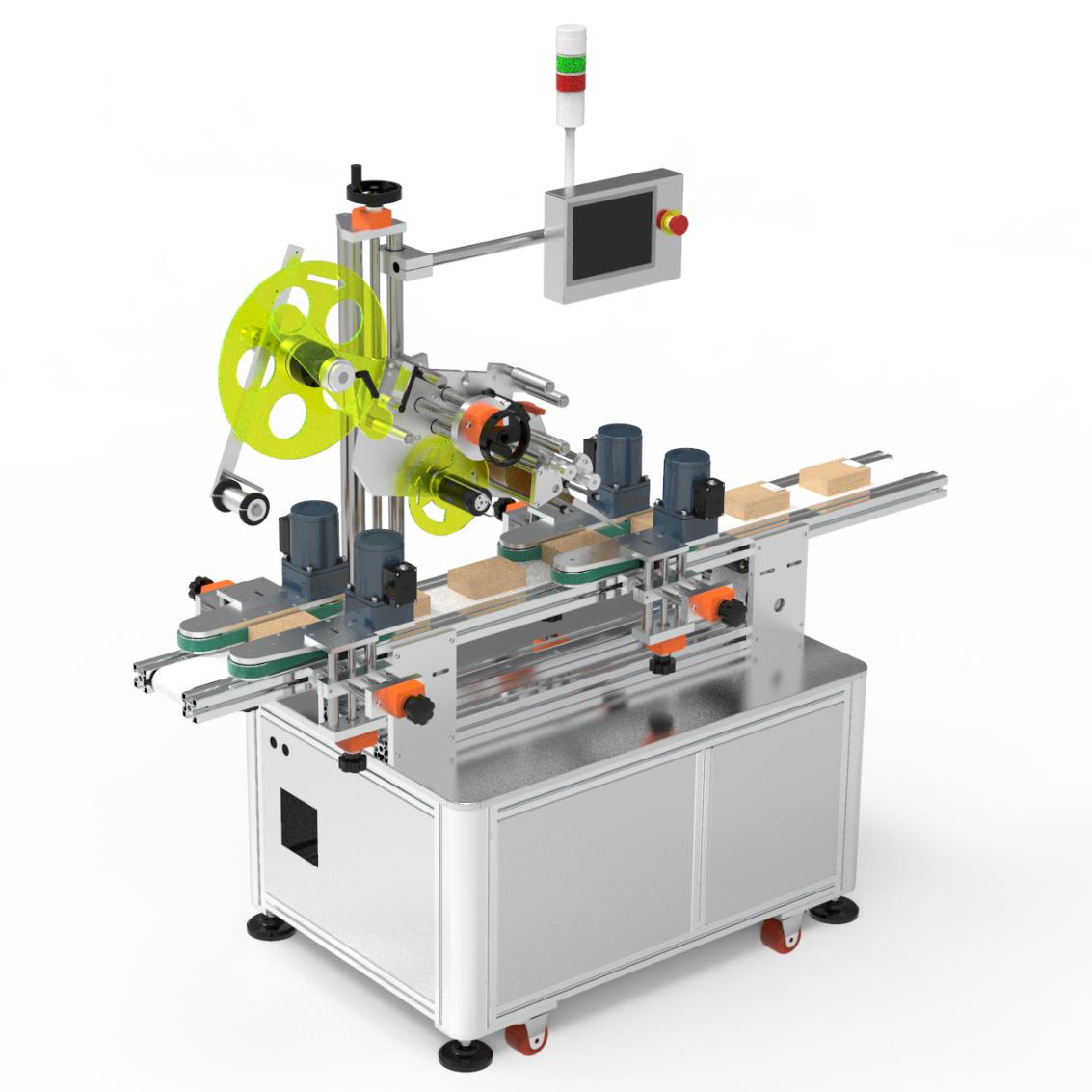

Auto C-wrap labeling machine

Model : CDPM-A

Capacity ：30-80pcs/min

Application: Box,tray,bag,clamshell and so on

Labeling position: On C-wrap

Machine size: 1800x800x1300mm

Control system : Step & Servo & German novexx for choose

Voltage : 110V/220V/380V

Optional device : Printer

Machine can customized depends on client labeling objects

Email us

Overview
Video
Parameter
Electrical Brand
Related Products

Auto C-WRAP Labeling Solution C-wrap label applicator
Machine customized suit for different kinds objects labeling in C-Wrap shape .
With printer device optional, printing the date and batch number on labels.
Machine conveyor can made depends on the labeling objects size.

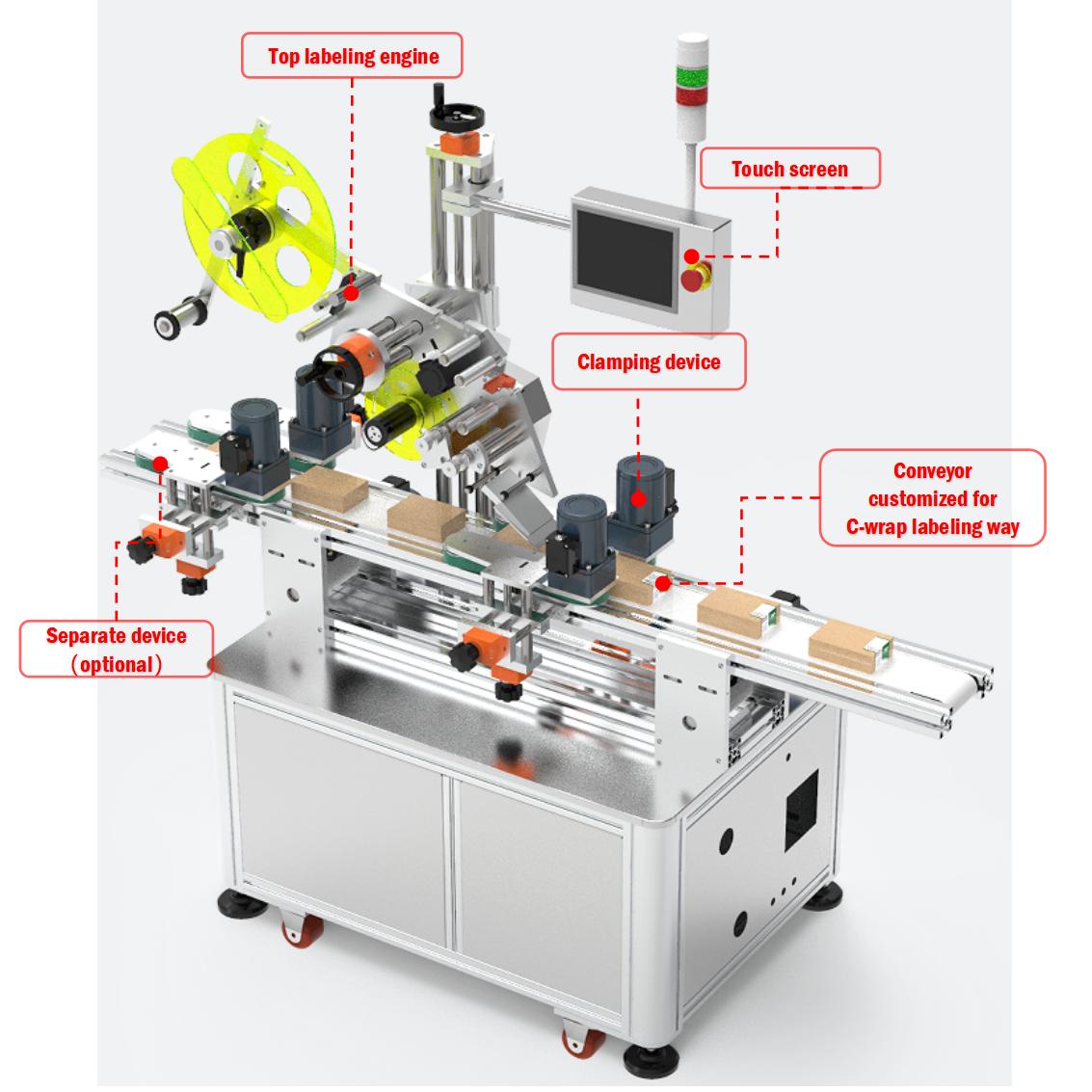

Working process
Box delivery to separate box device, keep all box in same distance and delivery to the clamping device, which keep box not move and waiting for labeling ;

When sensor check box, send signal to PLC, PLC received signal deal with information first, then output signal to servo motor driver, drive motor send label out with long distance and past label on box side surface, then the top and bottom two brush device brush label on box surface at the same time. labeling finish.

Parameter

Model	CDPM-A
Driving Mode	Servo control system
Yield（pcs/min）	10-80 (depends on product and label size)
Operating direction	Left or Right
Labeling Accuracy	±1.0 mm
Inner diameter of label roll	76 mm
Outer diameter of label roll	350 mm(max)
Suitable label size	W:10-150 mm L: 10-300 mm
Suitable labeling object size	W:20-350 mm L: 20-380 mm
Printer use air	5kg/cm ²
Voltage (can customized)	110V/220V/380V
Machine size	1800（L） 800 (W) 1300 (H) mm

Electrical Brand

No	Name	Brand
1	HMI (Touch screen)	SIEMENS
2	programmable control (PLC)	SIEMENS
3	Servo motor and driver	Panisonic
4	Sensor (check labeling objects)	Japan KEYENCE
5	Sensor (check label)	German LEUZE
6	Inverter	DELTA
7	Conveyor motor	German JSCC
8	Clamp motor	German JSCC
